CD 280-289

Side wire groove - Triple petticoat

CD 281

CD 281

Size: 117mm x 95mm (4.625" x 3.75")

Previous

Range

Next

Years produced: c.1893-1930s
Style (CD) scarcity: 8, 1,000+ but desirable color/markings
Intended use: High Voltage
Style / catalog number: 1, 2, 71
Number of unique insulators: 25
Notes: Replacement for CD 280. This style is a triple petticoat version of CD 183 which has two petticoats.

Primary Embossing = Embossing on the front of the insulator, usually is that manufacturers name or the customers name. No embossing units will be noted as NO EMBOSSING. Units with no name but with numbers or letters will be noted as NO NAME.

Examples:
HEMINGRAY
S.B.T.&.T.Co
NO NAME
NO EMBOSSING

EIN = Embossing Index Number is a standardized way to identify each unique embossing.

(FS) = Front Skirt
(RS) = Rear Skirt
(DO) = Dome
(CR) = Crown
(FC) = Front Crown
(RC) = Rear Crown
(BG) = Between Grooves
(FA ) = Front, Above wire groove
(FB) = Front, Below wire groove
(BE) = Base Embossed
(FU) = Front Umbrella
(RU) = Rear Umbrella
(FCE) = Front Center
(RCE) = Rear Center
(TE) = Top Ear
(TOP) = Top of Pinhole
/ = Next line of embossing

There are unique characteristics of the insulator that are not related to the embossing, but is worth noting.

Examples:
Factory molded brass bushing
Flaired skirt
MLOB = Mold Line Over Base
Waffle top
Wide saddle groove

Base = the bottom of the insulator. It is noted in the following standardized ways.

SDP = Sharp Drip Points
RDP = Round Drip Points
CB = Corrugated Base
SB = Smooth Base

= Insulator has been verified that exists
= Insulator has been verified that exists, but not listed in the "guide"
= Insulator has not yet been verified as existing
= Suspected error listing in the "guide" because listing does not match up with known manufacturing practices. Such as numbers and dots on an aqua insulator, or insulators listed with both factory molded brass bushing and without. Many do not come in both configurations and are listed as coming in both. Etc.

Color = The approximate color of the insulator. Due to manufacturing variations, insulators with the same color name maybe slightly different in actual appearance.

Primary Embossing EIN Embossing Special Features Base Color Verified?

HEMINGRAY

[010]

(FS) HEMINGRAY-71 (RS) MADE IN U.S.A.

RDP

Aqua

HEMINGRAY

[010]

(FS) HEMINGRAY-71 (RS) MADE IN U.S.A.

RDP

Blue Aqua

HEMINGRAY

[010]

(FS) HEMINGRAY-71 (RS) MADE IN U.S.A.

RDP

Carnival

HEMINGRAY

[010]

(FS) HEMINGRAY-71 (RS) MADE IN U.S.A.

RDP

Dark Aqua

HEMINGRAY

[010]

(FS) HEMINGRAY-71 (RS) MADE IN U.S.A.

RDP

Hemingray Blue

HEMINGRAY

[010]

(FS) HEMINGRAY-71 (RS) MADE IN U.S.A.

RDP

Root Beer Amber

HEMINGRAY

[020]

(FS) HEMINGRAY-71 (RS) MADE IN U.S.A.

SDP

Hemingray Blue

HEMINGRAY

[030]

(FS) HEMINGRAY-71/(Numbers) (RS) MADE IN U.S.A

RDP

Ice Blue

HEMINGRAY

[040]

(FS) HEMINGRAY/NO 1 HIGH VOLTAGE (RS) PATENT MAY 2 1893

SDP

Dark Aqua

HEMINGRAY

[040]

(FS) HEMINGRAY/NO 1 HIGH VOLTAGE (RS) PATENT MAY 2 1893

SDP

Green Aqua

HEMINGRAY

[040]

(FS) HEMINGRAY/NO 1 HIGH VOLTAGE (RS) PATENT MAY 2 1893

SDP

Hemingray Blue

HEMINGRAY

[050]

(FS) HEMINGRAY/NO 1 HIGH VOLTAGE (RS) PATENTED MAY 2 1893

SDP

Aqua

HEMINGRAY

[050]

(FS) HEMINGRAY/NO 1 HIGH VOLTAGE (RS) PATENTED MAY 2 1893

SDP

Blue Aqua

HEMINGRAY

[060]

(FS) HEMINGRAY/NO 1 HIGH VOLTAGE/(Blot out under 1) (RS) PATENT MAY 2 1893

SDP

Blue Aqua

HEMINGRAY

[060]

(FS) HEMINGRAY/NO 1 HIGH VOLTAGE/(Blot out under 1) (RS) PATENT MAY 2 1893

SDP

Dark Aqua

HEMINGRAY

[060]

(FS) HEMINGRAY/NO 1 HIGH VOLTAGE/(Blot out under 1) (RS) PATENT MAY 2 1893

SDP

Green

HEMINGRAY

[070]

(FS) HEMINGRAY/NO 2 HIGH VOLTAGE (RS) PATENT MAY 2 1893

SDP

Aqua

HEMINGRAY

[070]

(FS) HEMINGRAY/NO 2 HIGH VOLTAGE (RS) PATENT MAY 2 1893

SDP

Blue

HEMINGRAY

[070]

(FS) HEMINGRAY/NO 2 HIGH VOLTAGE (RS) PATENT MAY 2 1893

SDP

Light Aqua

HEMINGRAY

[080]

(FS) HEMINGRAY/NO 71 HIGH VOLTAGE (RS) PATENT MAY 2 1893/MADE IN U.S.A.

RDP

Hemingray Blue

HEMINGRAY

[090]

(FS) HEMINGRAY/NO 71 HIGH VOLTAGE (RS) PATENTED MAY 2 1893/MADE IN U.S.A.

SDP

Aqua

HEMINGRAY

[090]

(FS) HEMINGRAY/NO 71 HIGH VOLTAGE (RS) PATENTED MAY 2 1893/MADE IN U.S.A.

SDP

Hemingray Blue

HEMINGRAY

[090]

(FS) HEMINGRAY/NO 71 HIGH VOLTAGE (RS) PATENTED MAY 2 1893/MADE IN U.S.A.

SDP

Ice Blue

HEMINGRAY

[100]

(FS) HEMINGRAY/NO 71 HIGH VOLTAGE/(Blot out under 71) (RS) PATENT MAY 2 1893/MADE IN U.S.A.

SDP

Hemingray Blue

HEMINGRAY

[110]

(FS) HEMINGRAY/NO 71 HIGH VOLTAGE/(Blot out under 71) (RS) PATENTED MAY 2 1893/MADE IN U.S.A.

SDP

Hemingray Blue

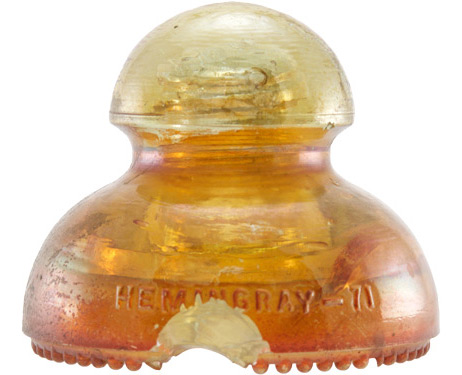

  • [010] - Carnival

    HEMINGRAY

    [010]

    Carnival

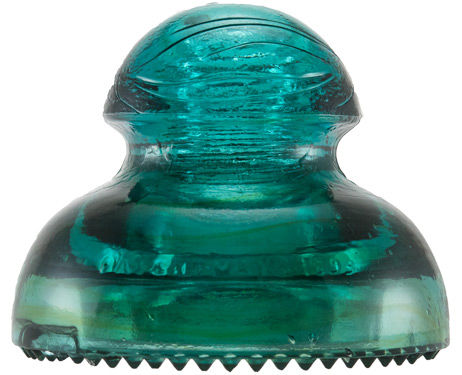

  • [060] - Aqua w/Amber Swirls

    HEMINGRAY

    [060]

    Aqua w/Amber Swirls

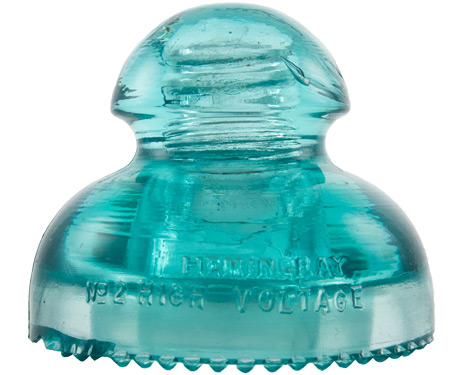

  • [070] - Light Aqua

    HEMINGRAY

    [070]

    Light Aqua

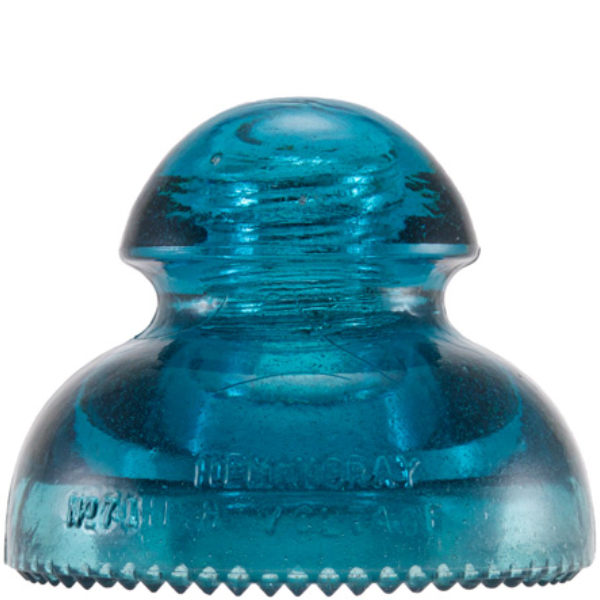

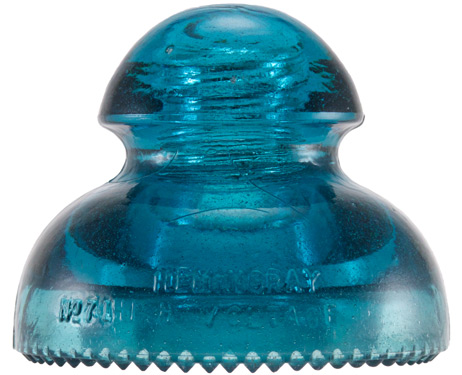

  • [100] - Hemingray Blue

    HEMINGRAY

    [100]

    Hemingray Blue
