CD 185-189

Pinhole goes all the way through

CD 185

CD 185

Size: 73mm x 88mm (2.875" x 3.5")

Previous

Range

Next

Years produced: c.1894-1920s
Style (CD) scarcity: 5, 251 - 500 known
Intended use: Mine Insulator
Style / catalog number: 95
Number of unique insulators:
20
Notes: Made for use in mines, come with drip points on top or bottom of the insulator. All Hemingray made mine insulators are hard to find, with the ice aqua one being the hardest.

Primary Embossing = Embossing on the front of the insulator, usually is that manufacturers name or the customers name. No embossing units will be noted as NO EMBOSSING. Units with no name but with numbers or letters will be noted as NO NAME.

Examples:
HEMINGRAY
S.B.T.&.T.Co
NO NAME
NO EMBOSSING

EIN = Embossing Index Number is a standardized way to identify each unique embossing.

(FS) = Front Skirt
(RS) = Rear Skirt
(DO) = Dome
(CR) = Crown
(FC) = Front Crown
(RC) = Rear Crown
(BG) = Between Grooves
(FA ) = Front, Above wire groove
(FB) = Front, Below wire groove
(BE) = Base Embossed
(FU) = Front Umbrella
(RU) = Rear Umbrella
(FCE) = Front Center
(RCE) = Rear Center
(TE) = Top Ear
(TOP) = Top of Pinhole
/ = Next line of embossing

There are unique characteristics of the insulator that are not related to the embossing, but is worth noting.

Examples:
Factory molded brass bushing
Flaired skirt
MLOB = Mold Line Over Base
Waffle top
Wide saddle groove

Base = the bottom of the insulator. It is noted in the following standardized ways.

SDP = Sharp Drip Points
RDP = Round Drip Points
CB = Corrugated Base
SB = Smooth Base

= Insulator has been verified that exists
= Insulator has been verified that exists, but not listed in the "guide"
= Insulator has not yet been verified as existing
= Suspected error listing in the "guide" because listing does not match up with known manufacturing practices. Such as numbers and dots on an aqua insulator, or insulators listed with both factory molded brass bushing and without. Many do not come in both configurations and are listed as coming in both. Etc.

Color = The approximate color of the insulator. Due to manufacturing variations, insulators with the same color name maybe slightly different in actual appearance.

Primary Embossing EIN Embossing Special Features Base Color Verified?

HEMINGRAY

[010]

(FS) HEMINGRAY (RS) NO 95

SB

Aqua

HEMINGRAY

[010]

(FS) HEMINGRAY (RS) NO 95

SB

Hemingray Blue

HEMINGRAY

[020]

(FS) HEMINGRAY (RS) NO 95

SDP

Aqua

HEMINGRAY

[030]

(FS) HEMINGRAY-95 (RS) MADE IN U.S.A

SDP

Aqua

HEMINGRAY

[030]

(FS) HEMINGRAY-95 (RS) MADE IN U.S.A

SDP

Hemingray Blue

HEMINGRAY

[040]

(FS) HEMINGRAY-95 (RS) MADE IN U.S.A./(HEMINGRAY-95 blotted out)

SDP

Aqua

HEMINGRAY

[040]

(FS) HEMINGRAY-95 (RS) MADE IN U.S.A./(HEMINGRAY-95 blotted out)

SDP

Hemingray Blue

JEFFREY MFG.CO.

[001]

(FA) S/SPECIAL MINE INSULATOR/JEFFREY MFG.CO. (FS) COLUMBUS OHIO/PATENT SEPT. 25 1894.

Drip points may be on the top or on the bottom of the insulator

SDP

Aqua

JEFFREY MFG.CO.

[007]

(FA) SPECIAL MINE INSULATOR/JEFFREY MFG.CO. (FS) COLUMBUS OHIO/PATENT APPLIED FOR

SB

Aqua

JEFFREY MFG.CO.

[010]

(FA) SPECIAL MINE INSULATOR/JEFFREY MFG.CO. (FS) COLUMBUS OHIO/PATENT SEPT 25 1894

SB

Aqua

JEFFREY MFG.CO.

[010]

(FA) SPECIAL MINE INSULATOR/JEFFREY MFG.CO. (FS) COLUMBUS OHIO/PATENT SEPT 25 1894

SB

Ice Aqua

JEFFREY MFG.CO.

[020]

(FA) SPECIAL MINE INSULATOR/JEFFREY MFG.CO. (FS) COLUMBUS OHIO/PATENT SEPT 25 1894

Drip points may be on the top or on the bottom of the insulator

SDP

Aqua

JEFFREY MFG.CO.

[020]

(FA) SPECIAL MINE INSULATOR/JEFFREY MFG.CO. (FS) COLUMBUS OHIO/PATENT SEPT 25 1894

Drip points may be on the top or on the bottom of the insulator

SDP

Hemingray Blue

JEFFREY MFG.CO.

[020]

(FA) SPECIAL MINE INSULATOR/JEFFREY MFG.CO. (FS) COLUMBUS OHIO/PATENT SEPT 25 1894 (

Drip points may be on the top or on the bottom of the insulator

SDP

Ice Aqua

JEFFREY MFG.CO.

[030]

(FA) SPECIAL MINE INSULATOR/JEFFREY MFG.CO. (FS) COLUMBUS OHIO/PATENT SEPT 25 1894/(APPLIED FOR blotted out)

SB

Aqua

JEFFREY MFG.CO.

[030]

(FA) SPECIAL MINE INSULATOR/JEFFREY MFG.CO. (FS) COLUMBUS OHIO/PATENT SEPT 25 1894/(APPLIED FOR blotted out)

SB

Ice Aqua

JEFFREY MFG.CO.

[040]

(FA) SPECIAL MINE INSULATOR/JEFFREY MFG.CO. (Many varieties of blot outs and spelling errors at the end of INSULATOR) (FS) COLUMBUS OHIO/PATENT SEPT 25 1894

Drip points may be on the top or on the bottom of the insulator

SDP

Aqua

JEFFREY MFG.CO.

[040]

(FA) SPECIAL MINE INSULATOR/JEFFREY MFG.CO. (Many varieties of blot outs and spelling errors at the end of INSULATOR) (FS) COLUMBUS OHIO/PATENT SEPT 25 1894

Drip points may be on the top or on the bottom of the insulator

SDP

Hemingray Blue

MINE INSULATOR

[010]

(FS) MINE/INSULATOR

SB

Aqua

NO EMBOSSING

[010]

(No embossing)

SB

Aqua

  • [030] - Hemingray Blue

    HEMINGRAY

    [030]

    Hemingray Blue

  • [020] - Aqua

    JEFFREY MFG.CO.

    [020]

    Aqua

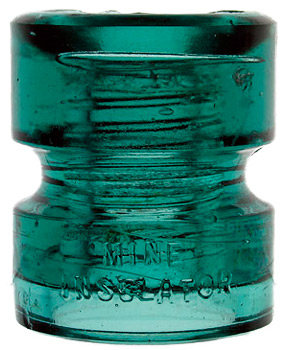

  • [010] - Aqua

    MINE INSULATOR

    [010]

    Aqua
